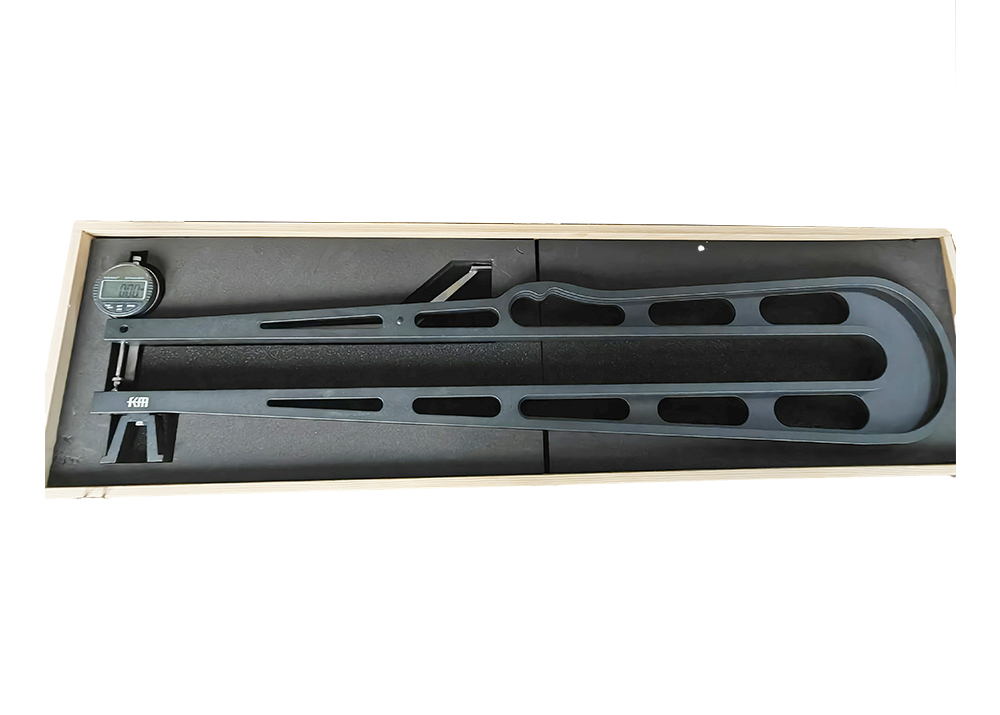

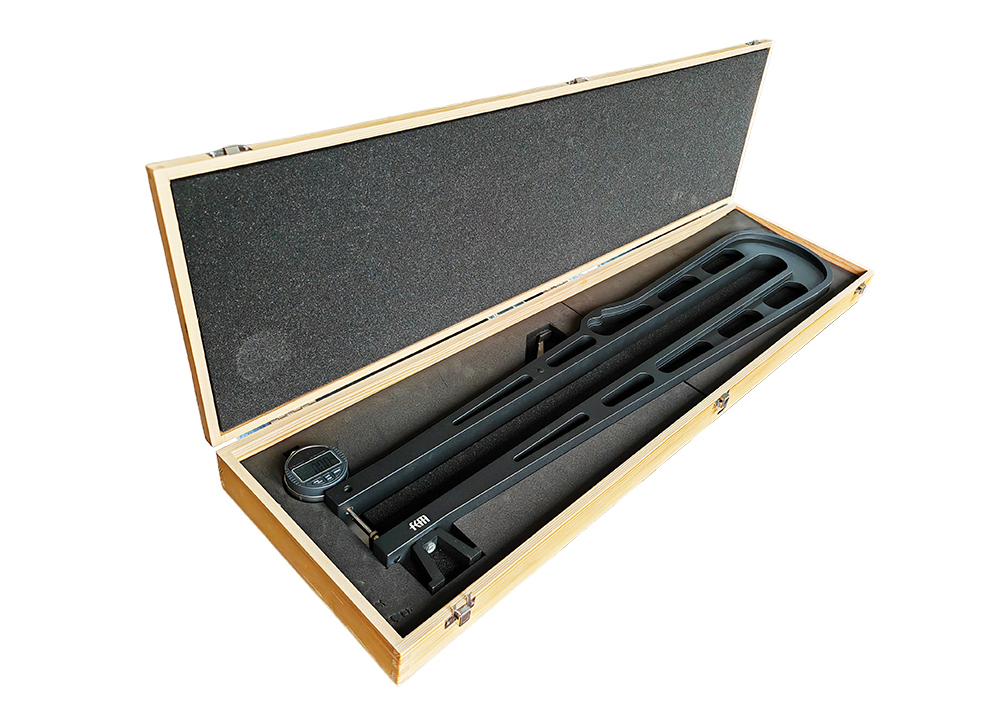

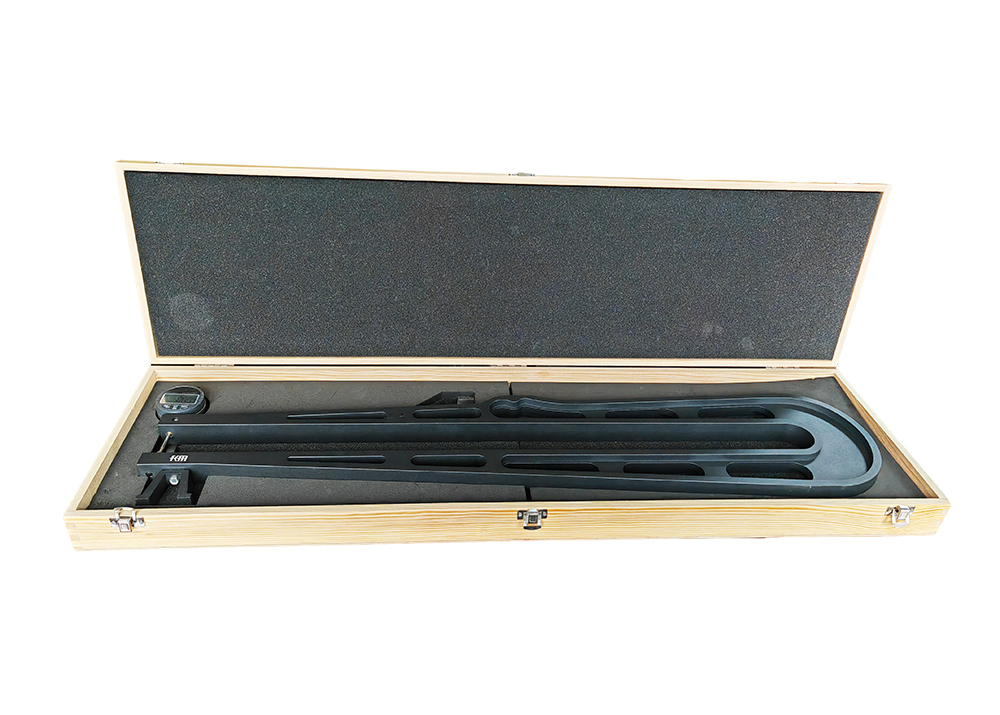

Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
-
Evidenziare
800mm Digital Thickness Tester
,Electronic Dial Thickness Gauge 25.4mm
-
GaranziaUn anno
-
MisurazioneMetrica/pollice
-
MaterialeAcciaio inossidabile
-
Misurare la facciaSferico
-
Allineare0-25,4 mm/0-1 ″
-
Risoluzione0.01 mm/0.0005′′
-
Profondità della gola800 mm
-
ApplicazioneMisurare lo spessore di carta, pelle, gomma
-
Caratteristicacon comoda impugnatura
-
Misurare i voltiSonda piatta o palla
-
PacchettoCassa in legno
-
Luogo di origineShaanxi, Cina
-
MarcaKM
-
CertificazioneISO DIN GB RoHS
-
Numero di modelloKM-424-110
-
Imballaggi particolariCustodia in legno 82*31*5 cm/pezzo 3,80 kg/pezzo
-
Tempi di consegnaEntro 15 giorni
-
Termini di pagamentoT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Capacità di alimentazione50000pieces/mese
Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
This digital thickness gauge is a precision measuring tool designed for accurate thickness measurement of various materials including paper, plastic, rubber, and metal. Featuring a clear digital display, it eliminates manual reading errors and supports easy conversion between metric and imperial units.
Key Features

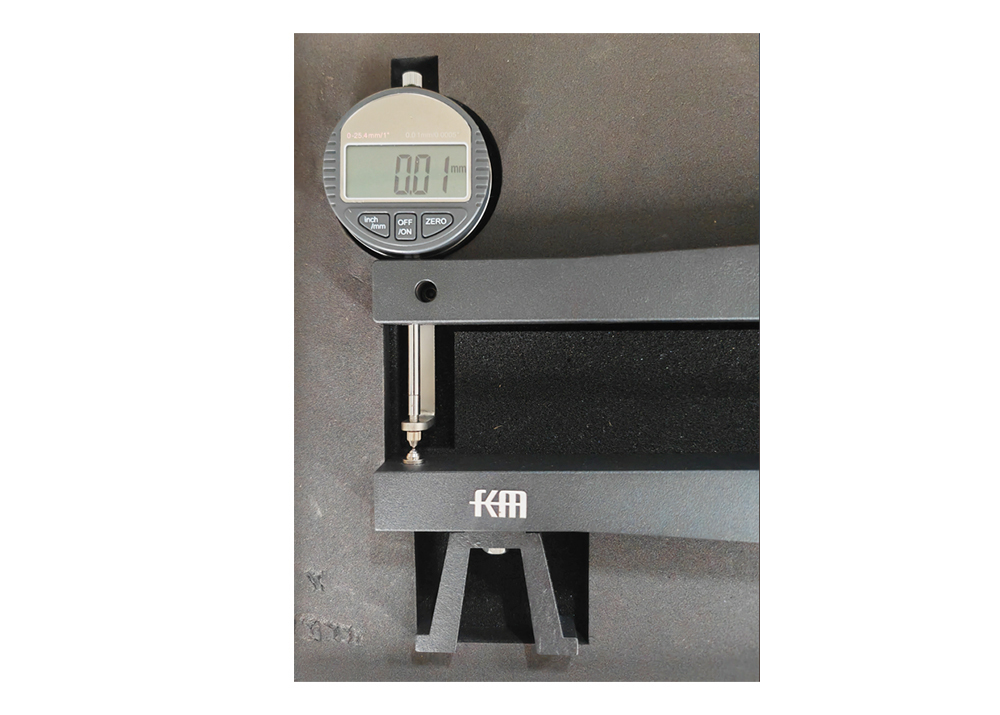

- Large LCD display for easy reading
- Zero-setting capability at any position
- Inch/Metric unit conversion
- Convenient power ON/OFF function
- Ergonomic grip handle for quick measurements
- Lifting lever for dial indicator
- Multiple measuring face options for diverse applications
- Choice of steel or ceramic measuring faces
- Customizable measuring depth available

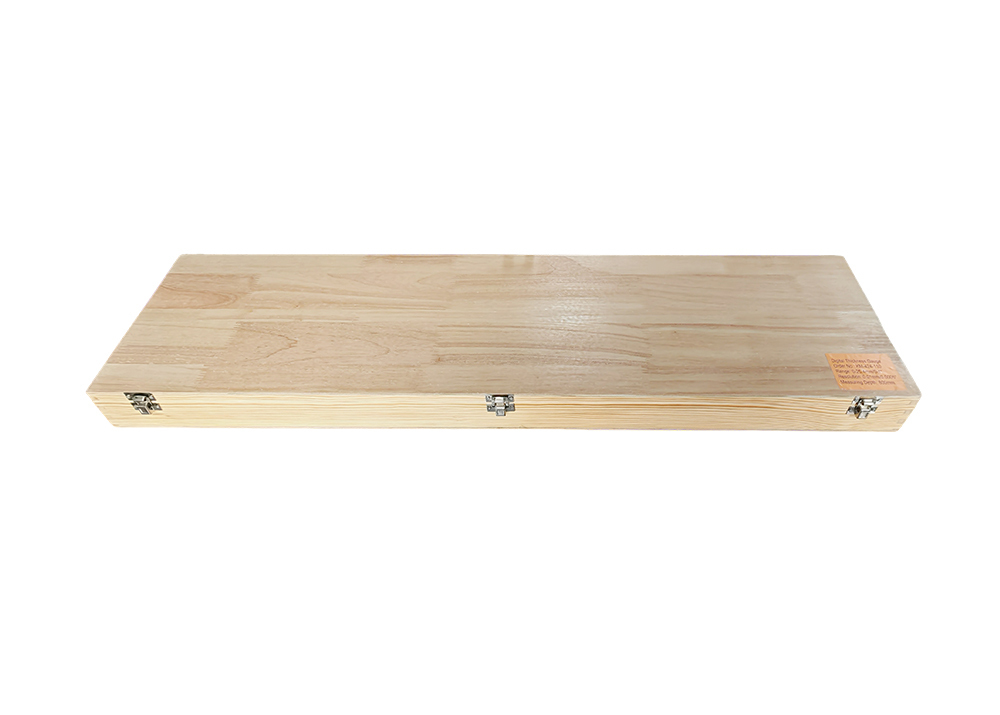

- Includes protective fitted case
Technical Specifications
| Order No. | Measuring Range | Resolution | Measuring Depth |
|---|---|---|---|
| KM-424-001 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 30mm |
| KM-424-002 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 60mm |
| KM-424-003 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 120mm |
| KM-424-004 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 200mm |
| KM-424-005 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 300mm |
| KM-424-006 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 400mm |
| KM-424-007 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | 500mm |
| KM-424-101 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 30mm |
| KM-424-102 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 60mm |
| KM-424-103 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 120mm |
| KM-424-104 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 200mm |
| KM-424-105 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 300mm |
| KM-424-106 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 400mm |
| KM-424-107 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | 500mm |
| KM-424-201 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 30mm |
| KM-424-202 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 60mm |
| KM-424-203 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 120mm |
| KM-424-204 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 200mm |
| KM-424-205 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 300mm |
| KM-424-206 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 400mm |
| KM-424-207 | 0-50mm/0-2″ | 0.01mm/0.0005″ | 500mm |
Industry Applications
- Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks
- Chemical industry: Measuring wall thickness of containers and pipelines
- Manufacturing: Measuring plastic products, paper, leather, rubber, fabric, and glass
- Aerospace: Measuring thickness of aircraft and engine components
- Automotive industry: Measuring thickness of body panels and brake discs
Usage Precautions
- Handle with care to prevent impacts or drops that may affect accuracy
- Keep the gauge clean and protected from liquids
- Do not remove output port cover when not in use
- Avoid contact with metal devices on output terminals
- Never apply voltage to any part of the thickness gauge
- Remove batteries during long-term storage
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
