0-150mm Stainless Steel Digital Tire Tread Depth Tester Gauge
-
GaranziaUn anno
-
MisurazioneMetrica/pollice
-
Tipo di prodottoCalibro digitale dei denti degli ingranaggi
-
Materialeacciaio inossidabile
-
Allineare0-150 mm/0-6′′
-
Risoluzione0.01 mm/0.0005′′
-
Precisione± 0,02 mm
-
Uso primarioProduzione di ingranaggi
-
CaratteristicaDisplay LCD digitale
-
Scopo della misurazioneControllare la profondità del battistrada del pneumatico
-
PacchettoScatola addominali
-
Luogo di origineShaanxi, Cina
-
MarcaKM
-
CertificazioneISO DIN GB RoHS
-
Numero di modelloKM-DTT-150
-
Imballaggi particolariBox ABS 41*18*6cm/pezzo 0,90 kg/pezzo
-
Tempi di consegnaEntro 15 giorni
-
Termini di pagamentoT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Capacità di alimentazione50000pieces/mese
0-150mm Stainless Steel Digital Tire Tread Depth Tester Gauge

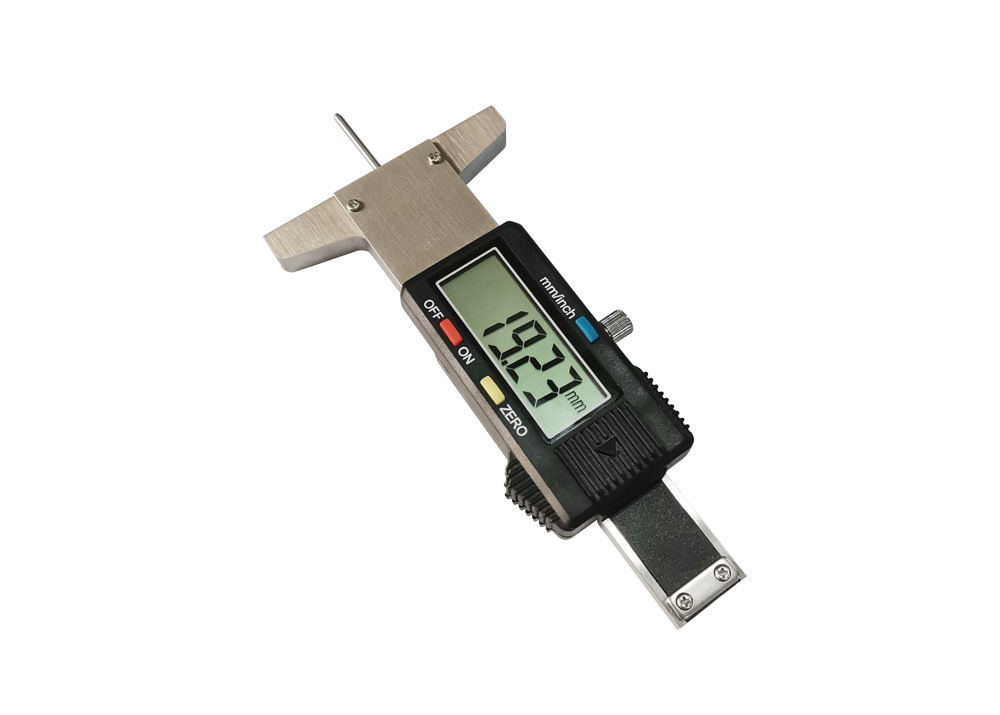

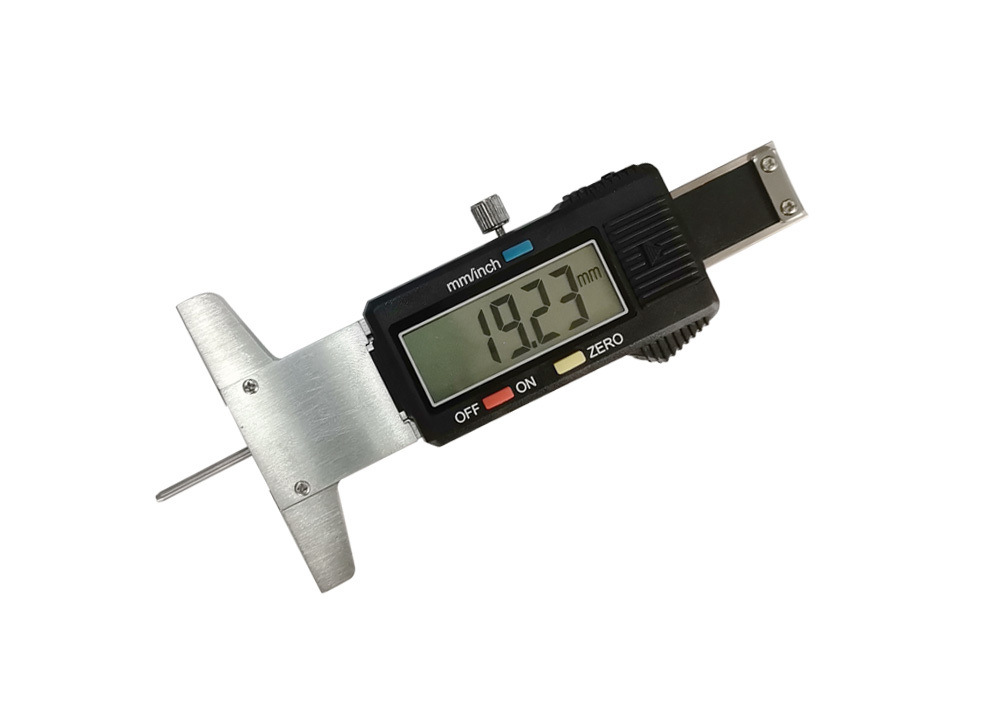

Digital tire depth gauge with thin rod is a high-precision measuring tool designed for accurate measuring depth of the tread on car tires
or measurements in narrow or hard-to-reach areas. Electronic tire tread depth gauge is made of high-strength stainless body, they have strong
resistance to wear and corrosion. Clear LCD display that displays the measurement results in real time and is easy for the user to read at any time.
Tire tread depth gauge is essential for vehicle maintenance. It measures the depth of your tire treads, indicating when they need replacing.
This tool is crucial for ensuring road safety and enhancing vehicle performance.
- Essential tool for vehicle maintenance and safety checks.
- Large LCD display for clear readings.
- Inch/metric conversion capability.
- Manual ON/OFF with auto power-off function.
- Zero-setting at any position.
- Hardened stainless steel construction.

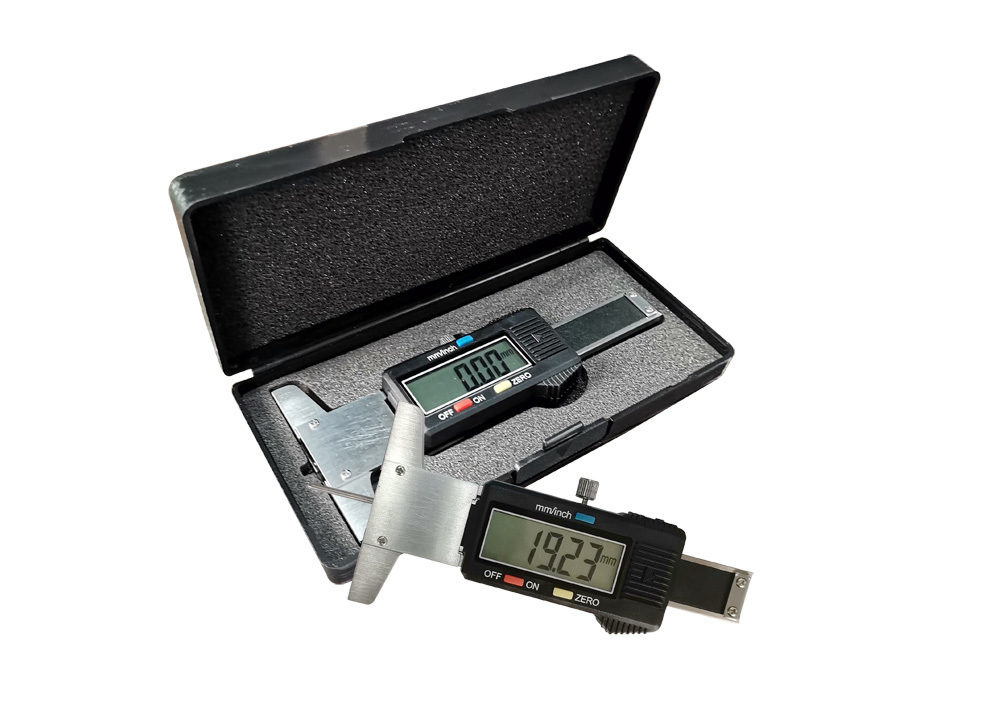

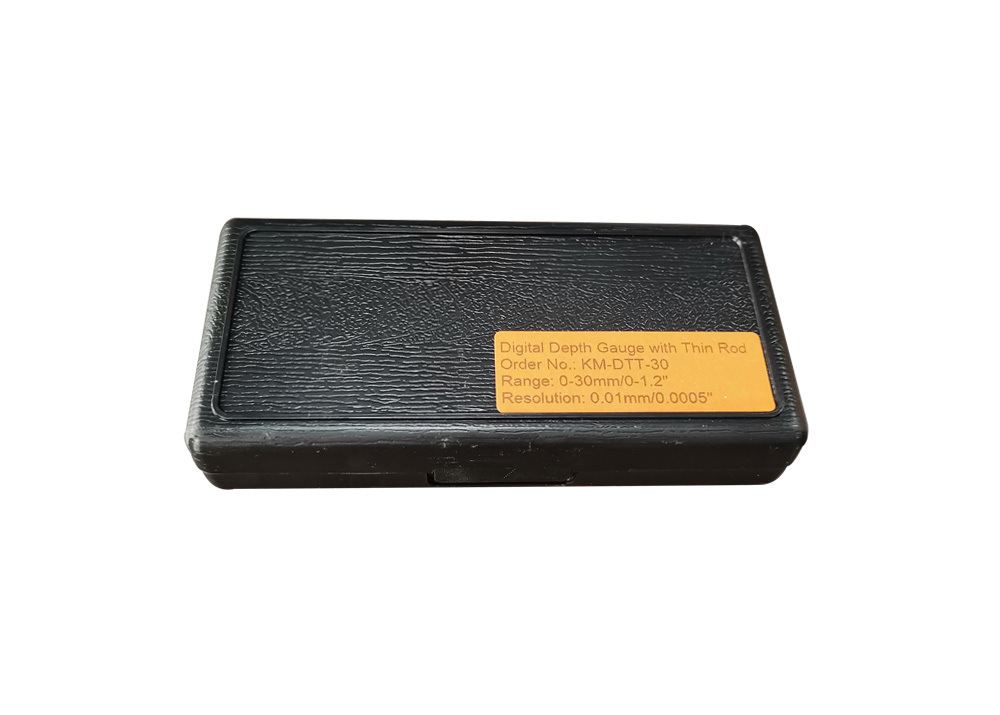

- Includes protective storage case.

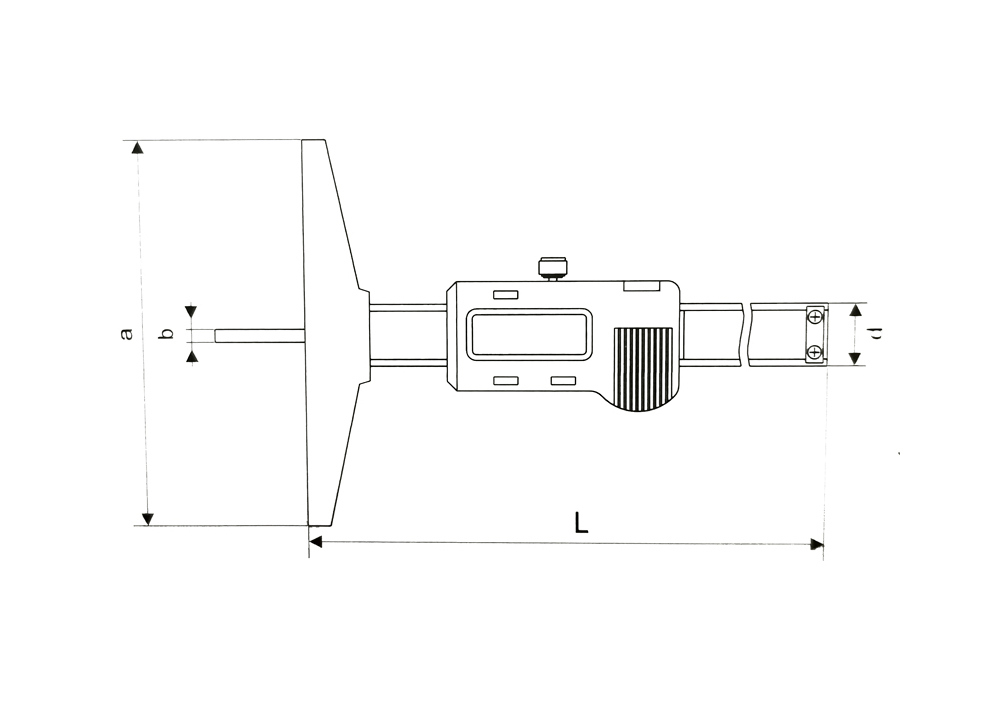

| Order No. | Range | Resolution | Accuracy | L | a | b | d |
|---|---|---|---|---|---|---|---|
| KM-DTT-25 | 0-25mm/0-1″ | 0.01mm/0.0005″ | ±0.02mm | 90mm | 60mm | 2mm | 13mm |
| KM-DTT-30 | 0-30mm/0-1.2″ | 0.01mm/0.0005″ | ±0.02mm | 125mm | 60mm | 2mm | 16mm |
| KM-DTT-50 | 0-50mm/0-2″ | 0.01mm/0.0005″ | ±0.02mm | 130mm | 100mm | 2mm | 16mm |
| KM-DTT-100 | 0-100m/0-4″ | 0.01mm/0.0005″ | ±0.02mm | 180mm | 100mm | 4mm | 16mm |
| KM-DTT-150 | 0-150mm//0-6″ | 0.01mm/0.0005″ | ±0.02mm | 230mm | 100mm | 4mm | 16mm |
- Tire tread depth measurement for vehicle maintenance.
- Depth measurement of micro-holes and small-diameter bores.
- Measurement of mold cavities and ejection pin holes.
- Quality control of CNC-machined components.
- Inspection of fine engraving depths in die-making.
- Clean measurement surfaces of debris before use.
- Gently clean after each use with a soft cloth.
- Store in protective case with rod cover.
- Keep hands clear of moving parts during measurement.
- Never clamp the rod in vises or fixtures.
- Use only for intended depth measurement purposes.
