Three Point Digital Caliper Internal Groove & Bore Measurement Tool for Bore Dimensions
-
Evidenziare
digital caliper bore measurement tool
,three point internal groove caliper
,special caliper for bore dimensions
-
GaranziaUn anno
-
MisurazioneMetrica/pollice
-
Oggetto di misurazioneDiametro esterno di 3 flauti testa di taglio
-
Allineare150-230mm/5-9 ″
-
Risoluzione0.01 mm/0.0005′′
-
Precisione± 0,03 mm
-
Materialeacciaio inossidabile
-
Personalizzatoaccettabile
-

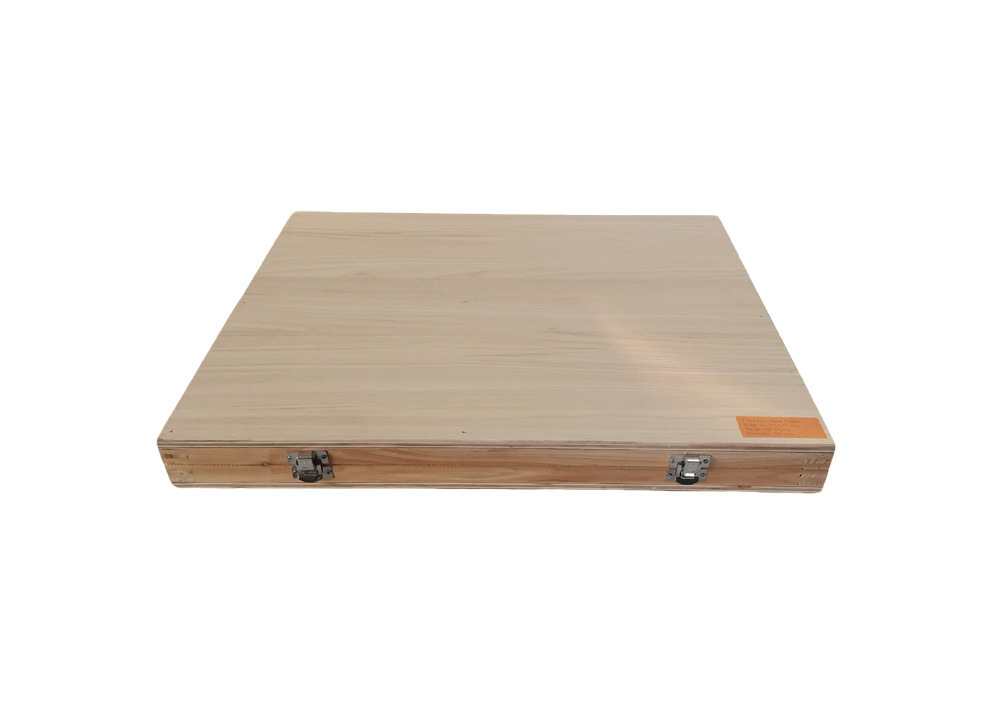

PacchettoScatola di legno
-
Luogo di origineShaanxi, Cina
-
MarcaKM
-
CertificazioneISO DIN GB RoHS
-
Numero di modelloKM-DAT-230
-
Imballaggi particolariBox in legno 50*37*6 cm/pezzo 1,30 kg/pezzo
-
Tempi di consegnaEntro 15 giorni
-
Termini di pagamentoT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Capacità di alimentazione50000pieces/mese
Three Point Digital Caliper Internal Groove & Bore Measurement Tool for Bore Dimensions
Three Point Digital Caliper Internal Groove & Bore Measurement Tool for Bore Dimensions
Product Overview

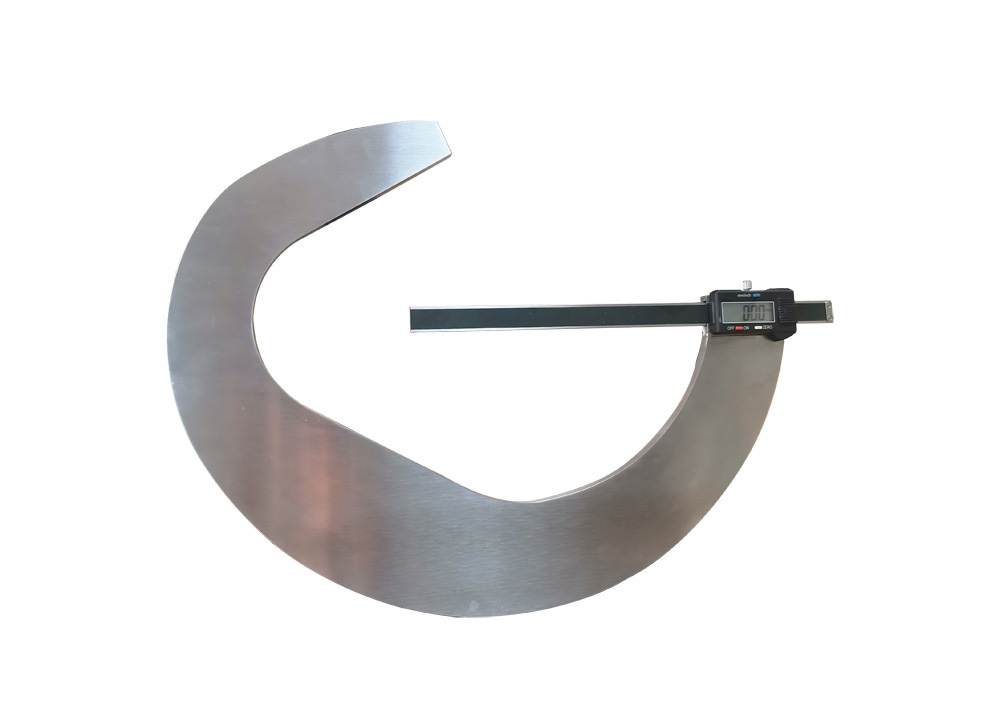

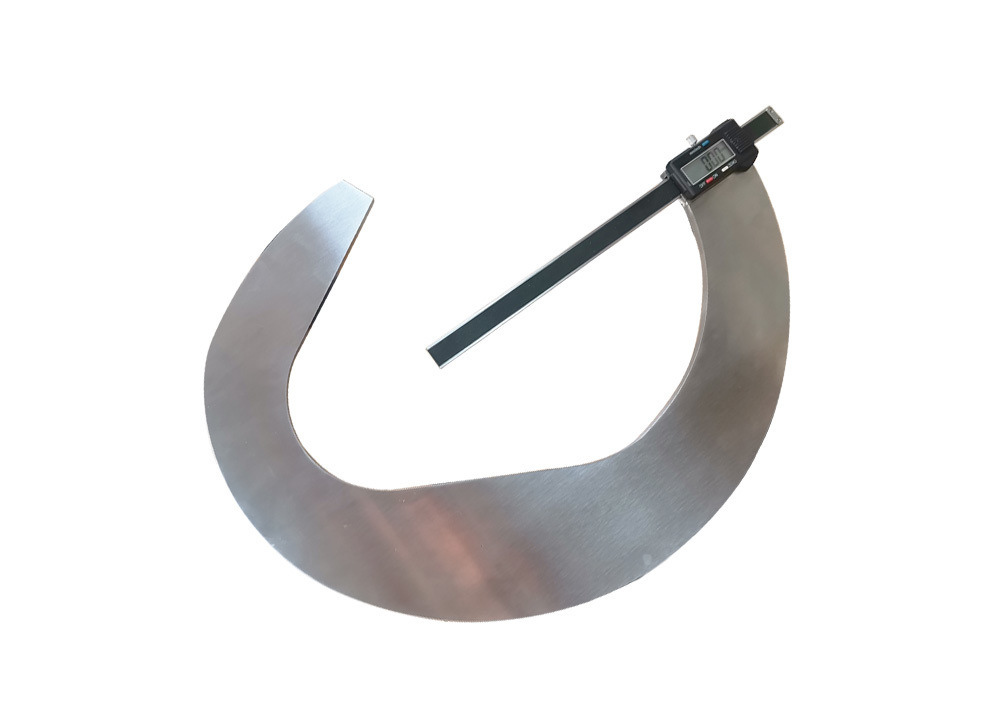

Our 3 point digital caliper is designed to measure the dimensions of router bits with 3 cutting edges. The three point digital calipers allow you to get the precise dimensions of any Z=3 bit within moments once properly calibrated. Its unique design enables accurate measurement of the diameter dimensions of parts with odd number of grooves, such as end mills, taps, reamers, etc.
Key Features
- For measuring the outside diameter of 3 flutes cutting head (such as taps, reamers, end mills).
- LCD display for easy-reading.
- in/mm: inch/metric conversion.
- ON/OFF: power on and power off.

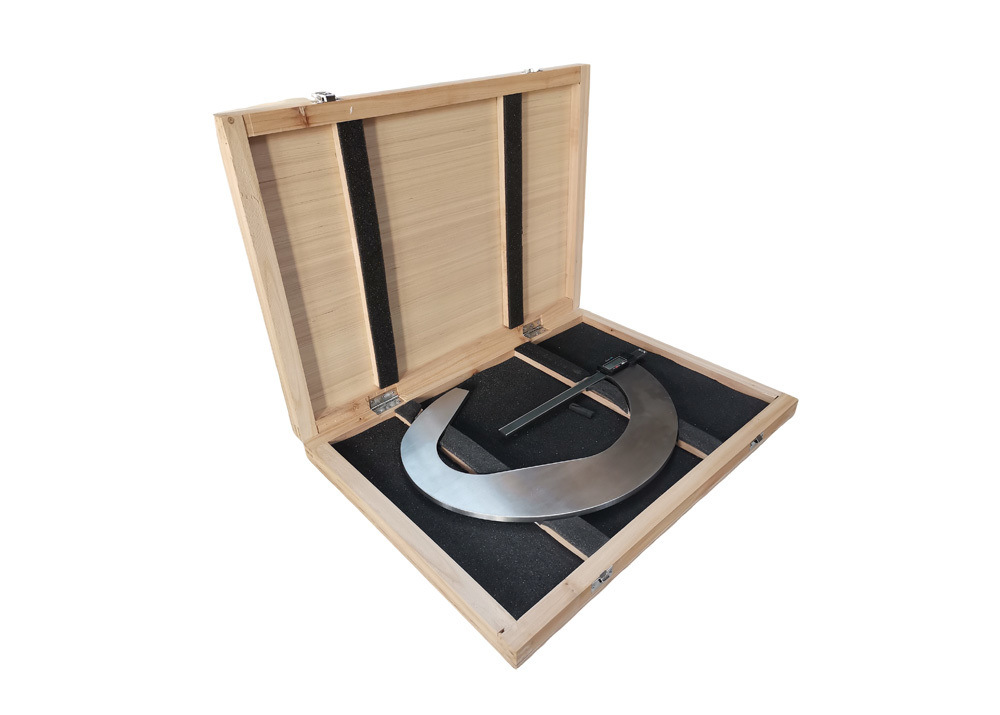

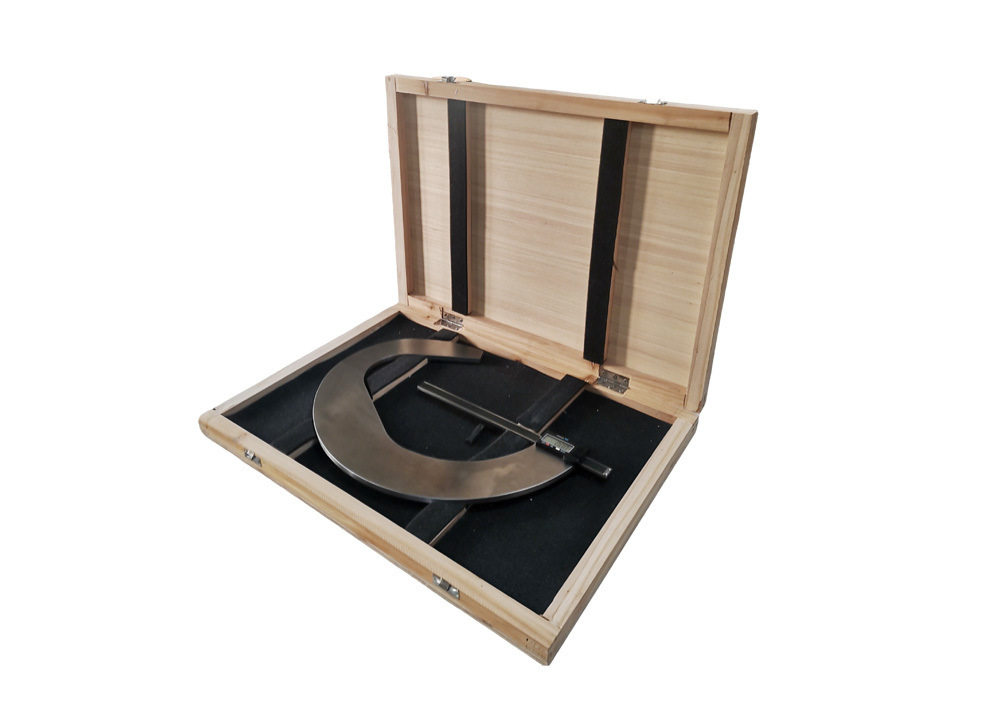

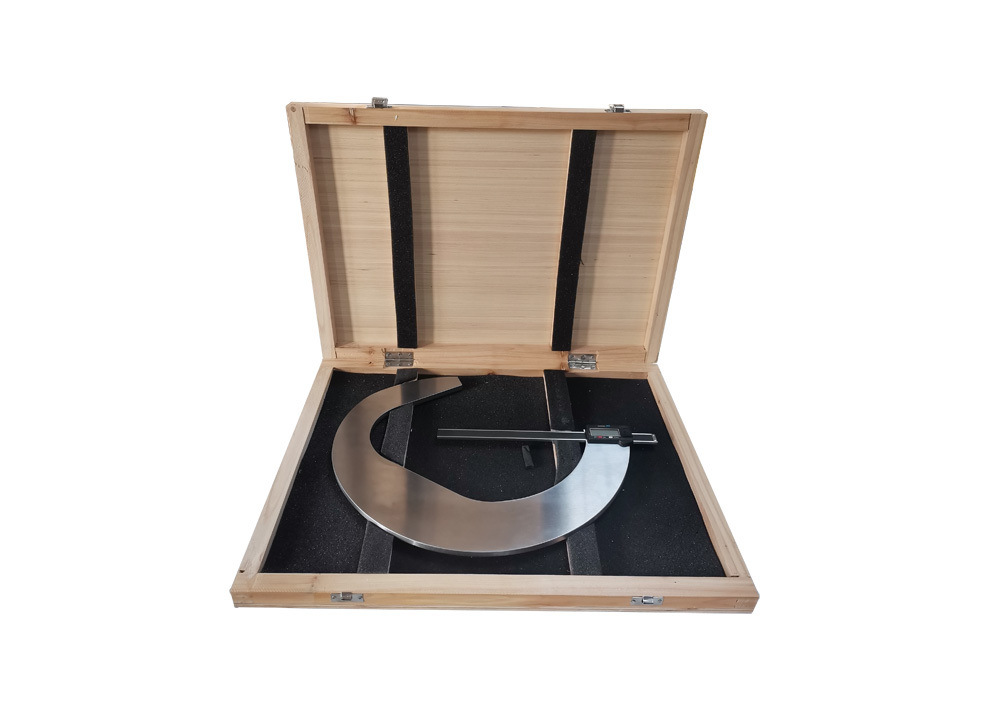

- Supplied in fitted case.
The large screen design of this caliper makes measurement results more intuitive, and users can read data clearly. Its stainless steel construction is robust and durable, ensuring stable measurement accuracy over long periods of use.
Technical Specifications
| Order No. | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| KM-DAT-230 | 130-230mm/5-9″ | 0.01mm/0.0005″ | ±0.03mm |
Usage Precautions
- Clean the measuring surface to ensure no dust, oil or other impurities that could affect measurement accuracy.
- Keep the digital caliper clean and prevent water/liquid entry to avoid damaging electronic components.
- Do not remove the data output interface cover when not in use, and avoid contact with metal parts.
- Remove battery if the caliper won't be used for extended periods.
Applications
Digital 3 point caliper is primarily used in metal working and CNC milling machine industries for measuring the diameter of router bits with three cutting edges.
Frequently Asked Questions
Who are we?
Deko Corporation mainly dedicates to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, etc.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
How about after-sales service?
One year warranty for all products. If you find any defective accessories when receiving goods, we will ship replacement parts or products. As an experienced manufacturer, we have strict calibration and inspection processes to ensure product quality.
