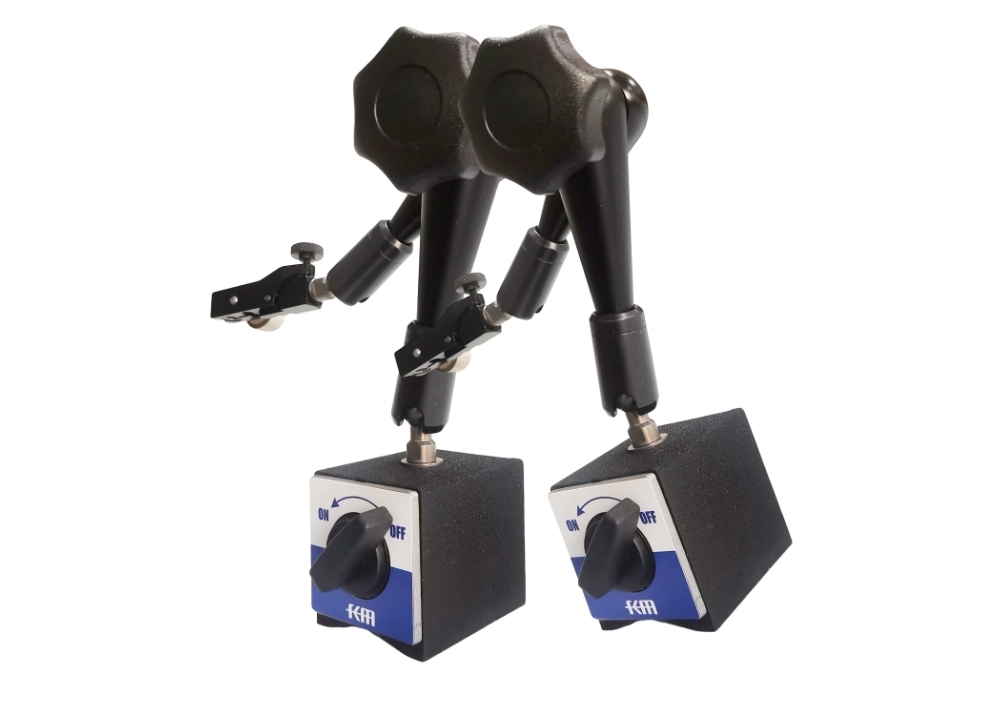

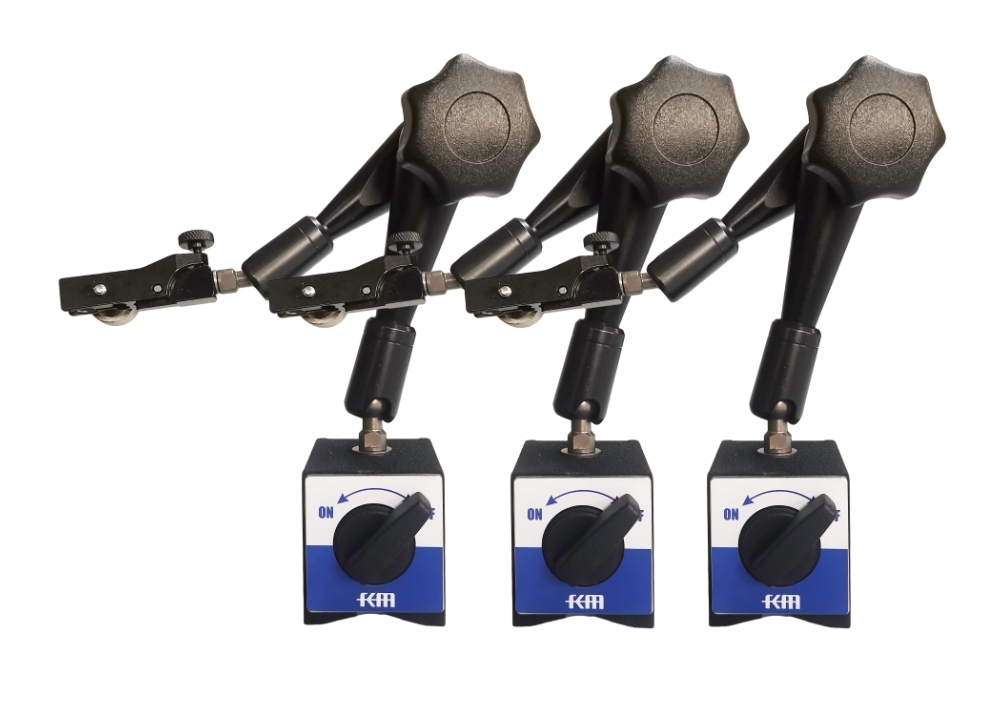

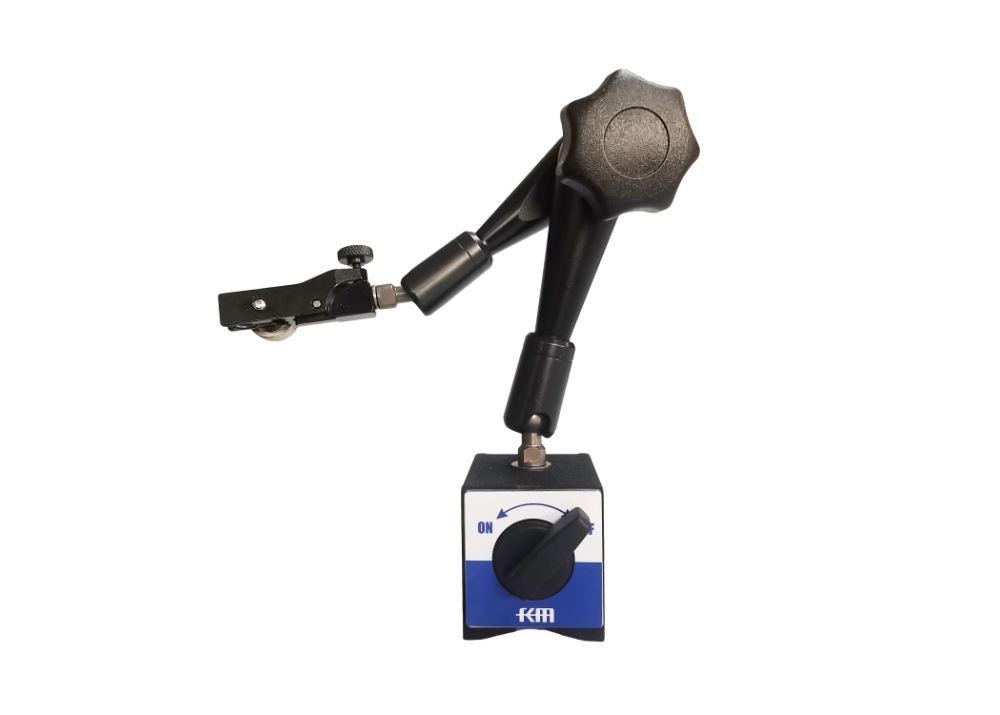

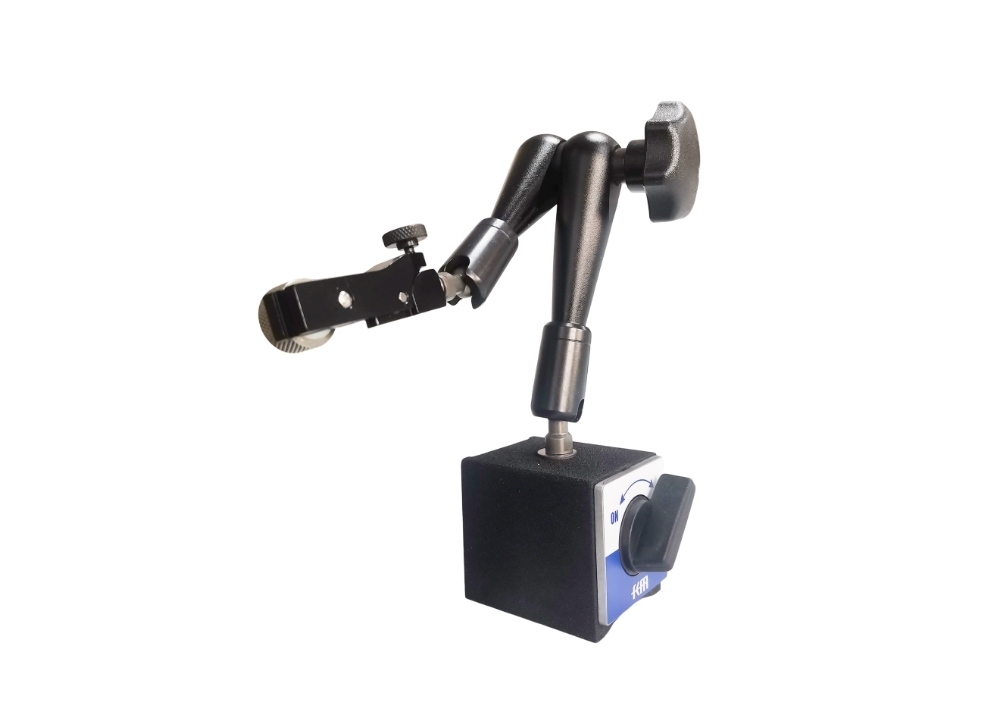

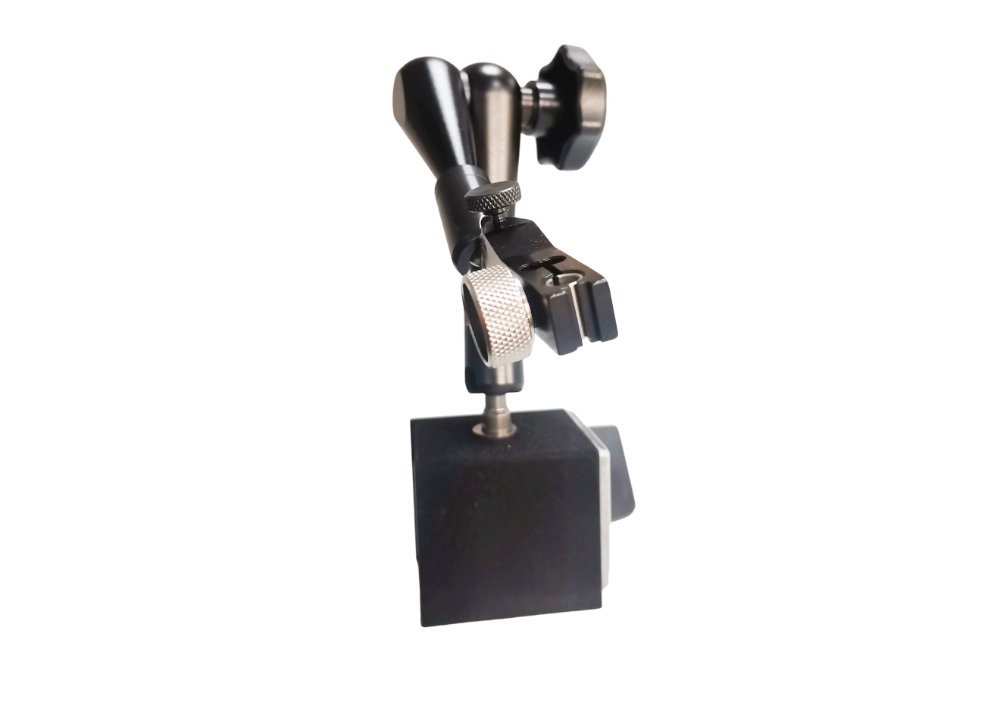

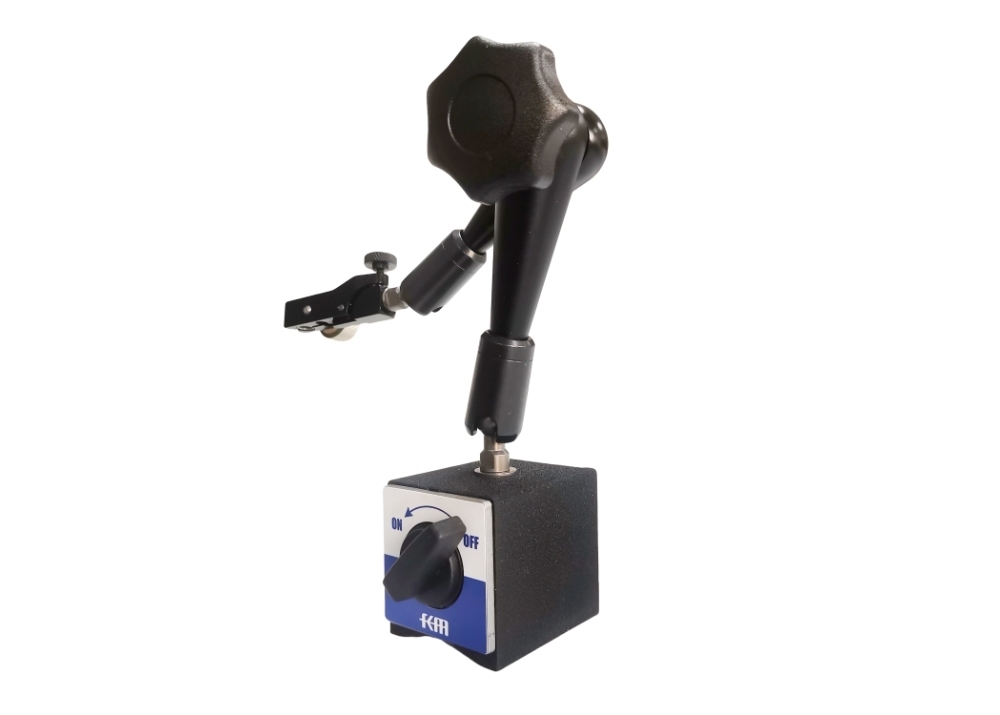

Fine Adjustment & Strong Hold 80kg Stainless Steel Magnetic Base Holder Stand for Dial Indicators
-
Evidenziare
80kg Dial Indicators Magnetic Base Holder
,Stainless Steel Magnetic Base Holder Stand
,Fine Adjustment Magnetic Base Holder Stand
-
GaranziaUn anno
-
TipoSupporto magnetico
-
Materialeacciaio inossidabile
-
ColoreNero
-
MeccanismoMeccanismo di bloccaggio
-
FunzioneUn bel adattamento
-
Forza magnetica80 kg
-
Base ((L×W×H)60 × 50 × 55 mm
-
Lunghezza del braccio295 mm
-
Pacchettoscatola di carta
-
Luogo di origineShaanxi, Cina
-
MarcaKM
-
CertificazioneISO DIN GB RoHS
-
Numero di modelloKM-603-03
-
Imballaggi particolariCasella di carta 25*14*9cm/pezzo 1,50kg/pezzo
-
Tempi di consegnaEntro 15 giorni
-
Termini di pagamentoT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Capacità di alimentazione50000pieces/mese
Fine Adjustment & Strong Hold 80kg Stainless Steel Magnetic Base Holder Stand for Dial Indicators
Fine Adjustment & Strong Hold 80kg Stainless Steel Magnetic Base Holder Stand for Dial Indicators
Product Description
Our premium mechanical universal magnetic base stand features a super strong arm lock system with hardened high-class steel wear parts (HRC 58°+), precision-machined on CNC lathes. This forced locking magnetic base delivers 50kg to 100kg holding force for secure attachment to ferromagnetic surfaces, providing a stable platform for precision measurement tools. Includes fitted case for protection during transport and storage.
Key Features
- Advanced locking mechanism with reinforced arm lock
- Convenient ON/OFF magnetic switch
- Precision fine adjustment for higher accuracy
- Dovetail groove compatible with test indicators
- Universal clamp hole for both metric and inch indicators
Technical Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base (L×W×H) | Arm Length | Overall Length |
|---|---|---|---|---|---|
| KM-603-01 | 50kg | 6mm/8mm, Dovetail | 40×40×40mm | 182mm | 222mm |
| KM-603-02 | 50kg | 6mm/8mm, 3/8"/Dovetail | 40×40×40mm | 220mm | 260mm |
| KM-603-03 | 80kg | 6mm/8mm, 3/8"/Dovetail | 60×50×55mm | 295mm | 350mm |
| KM-603-04 | 100kg | 6mm/8mm, 3/8"/Dovetail | 73×50×55mm | 355mm | 410mm |
| KM-603-05 | 100kg | 6mm/8mm, 3/8"/Dovetail | 73×50×55mm | 415mm | 470mm |
Industrial Applications
Essential for machine building applications, our magnetic stand is widely used for inspecting machine tool accuracy, workpiece dimensional accuracy, flatness measurements, and detecting concentricity and parallelism during assembly processes to ensure product quality and performance.
Usage Guidelines
- Place on flat, dry, non-magnetic surfaces only
- Adjust to proper position before fixing measured objects
- Minimize vibration and interference during measurements
- Perform regular maintenance checks and timely repairs
