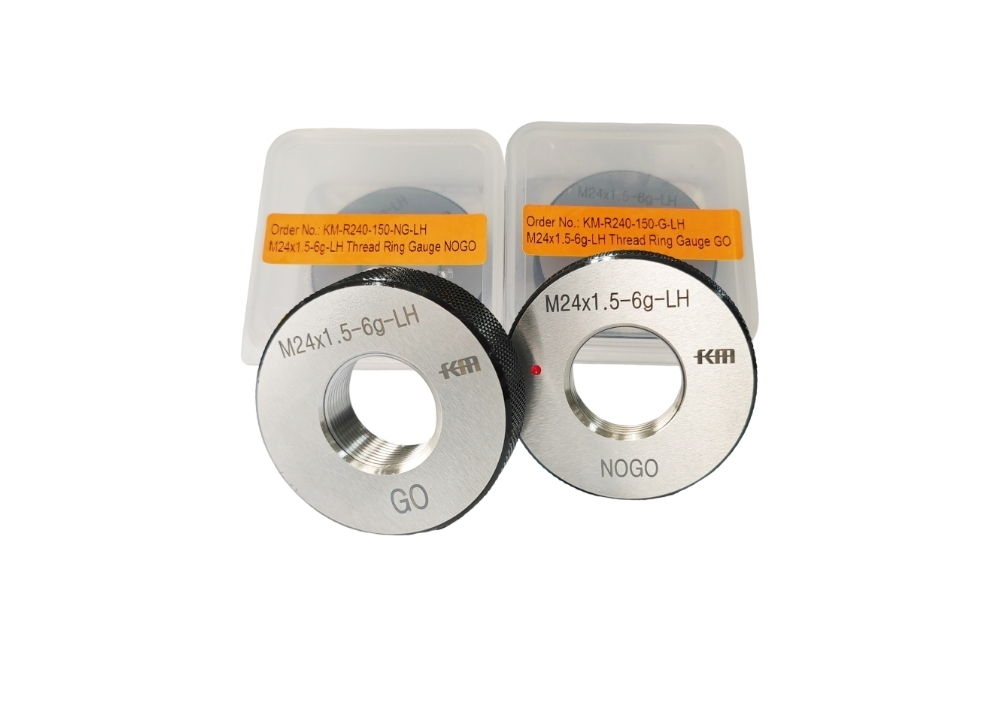

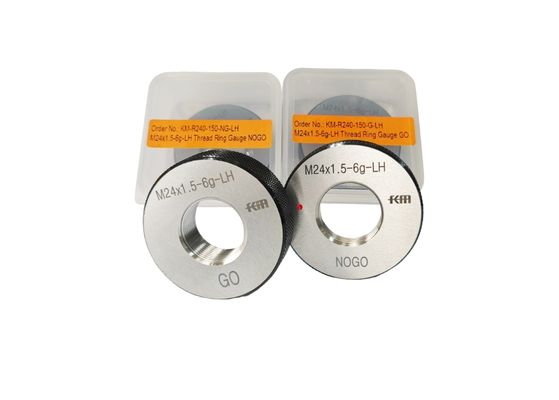

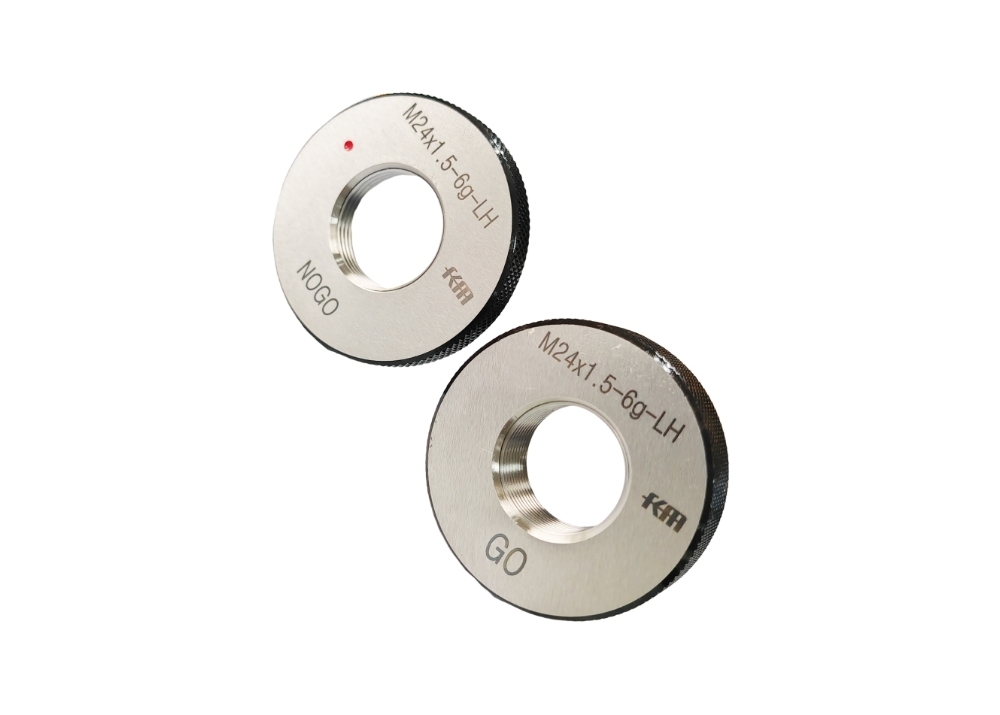

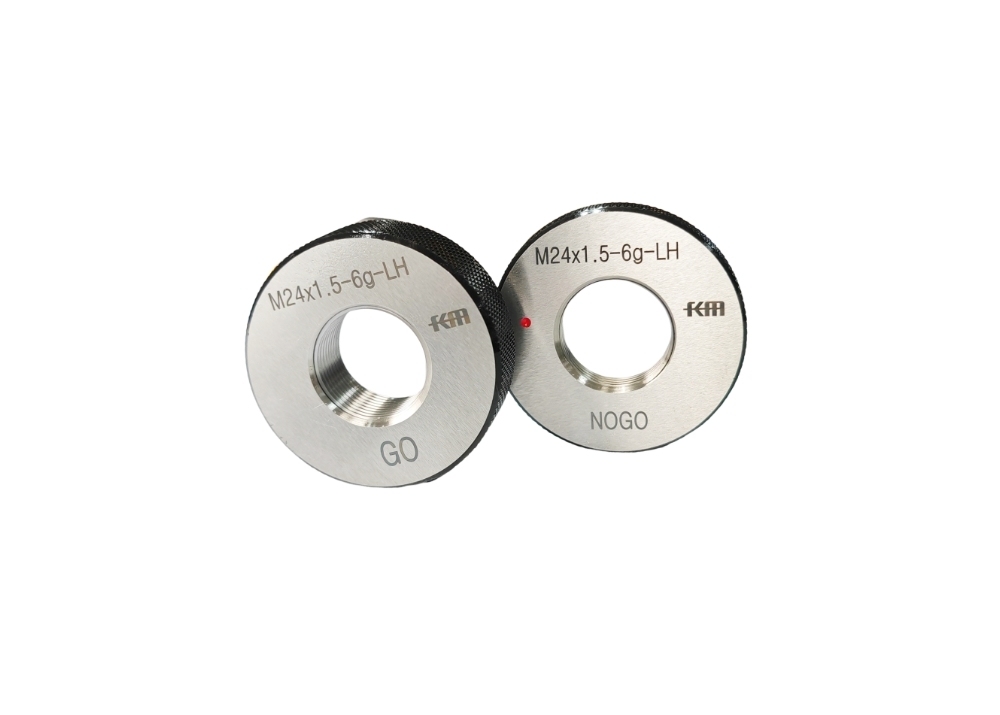

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking

Prodotti - Indicatore dell'anello e della spina - Indicatore metrico dell'anello e del filo della spina
  • Evidenziare

    M24X1.5 Thread Ring Gauge

    ,

    6g Accuracy Thread Ring Gauge

    ,

    Left Hand Metric Thread Ring Gauge

  • Garanzia
    Un anno
  • Tipo
    Indicatore dell'anello di filo
  • Standard
    DIN13, DIN2280-89
  • Misurazione
    Metrica
  • Specifica della filettatura
    M24x1,5-6g-SX NOGO
  • Forma
    Girare
  • Oggetto di misurazione
    Fili di prodotto esterni su viti, bulloni
  • Utilizzo
    per il lavoro e l'ispezione
  • Precisione
    6g,6h,7g,7h,8g,8h, ecc.
  • Pacchetto
    Scatola in ABS
  • Luogo di origine
    Shaanxi, Cina
  • Marca
    KM
  • Certificazione
    ISO DIN GB RoHS
  • Numero di modello
    KM-R240-150-SX
  • Imballaggi particolari
    Scatola in ABS 7*7*3 cm/pezzo 0,36 kg/pezzo
  • Tempi di consegna
    Entro 15 giorni
  • Termini di pagamento
    L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • Capacità di alimentazione
    50000 pezzi/mese

Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking

  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
  • Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
Ottieni prezzo Contattaci
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy levels including 6g, 6h, 7g, 7h, 8g, and 8h.
Our facility features first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Product Features
  • Metric thread ring gauge for precise measurements
  • Available in multiple accuracy grades: 6g, 6h, 7g, 7h, 8g, 8h
  • Includes both GO and NOGO types for comprehensive verification
  • Conforms to DIN13 and DIN2280-89 standards
  • Wear-resistant and corrosion-resistant construction
  • Stable structure for easy operation
  • Supplied in protective fitted case
Technical Specifications
Order No. Size Coarse Fine Accuracy
KM-R001 M1.0 0.25 0.20 3h 4h 5g6g 5h4h 5h6h 6e 6f 6g 6h 7g6g 7h6h 8g 8h
KM-R011 M1.1 0.25 0.20
KM-R012 M1.2 0.25 0.20
KM-R014 M1.4 0.30 0.20
KM-R016 M1.6 0.35 0.20
KM-R018 M1.8 0.35 0.20
KM-R020 M2.0 0.40 0.25
KM-R022 M2.2 0.45 0.25
KM-R025 M2.5 0.45 0.35
KM-R030 M3.0 0.50 0.35
KM-R035 M3.5 0.60 0.35
KM-R040 M4.0 0.70 0.50
KM-R050 M5.0 0.80 0.50
KM-R060 M6.0 1.00 0.75 0.50
KM-R080 M8.0 1.25 1.00 0.75
KM-R100 M10.0 1.50 1.25 1.00
KM-R120 M12.0 1.75 1.50 1.25
KM-R140 M14.0 2.00 1.50 1.25
KM-R160 M16.0 2.00 1.50 1.00
KM-R180 M18.0 2.50 2.00 1.50
KM-R320 M320


Applications
The threaded ring gauge is primarily used to measure thread diameter and pitch. With advantages of high precision, wide measurement range, and simple operation, these gauges are widely used in machinery manufacturing, aerospace, automotive manufacturing, and other industrial fields.
Usage Precautions
  • Avoid touching the working surface with bare hands to prevent rust
  • Store properly on tool cabinet tables or wooden backing plates - never on machine tool holders or guide rails
  • Inspect regularly for damage, rust, or deformation
  • If rust appears, soak in gasoline, carefully wipe clean, and apply anti-rust oil
  • Never store working surfaces of two gauges together to prevent sticking
  • After use, wipe clean and store in dry conditions

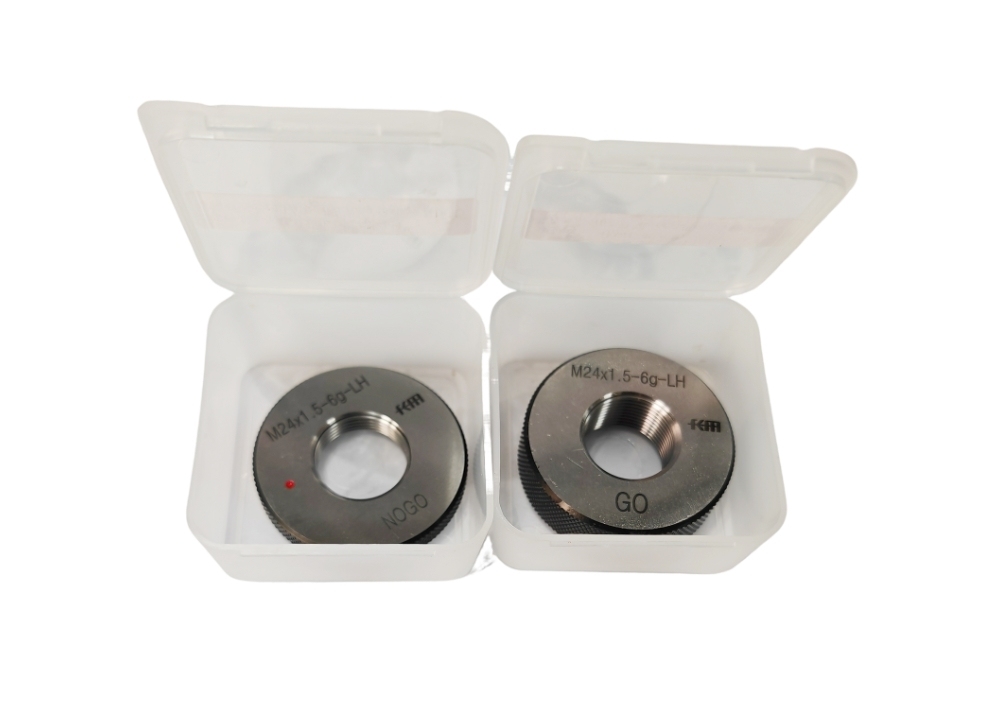

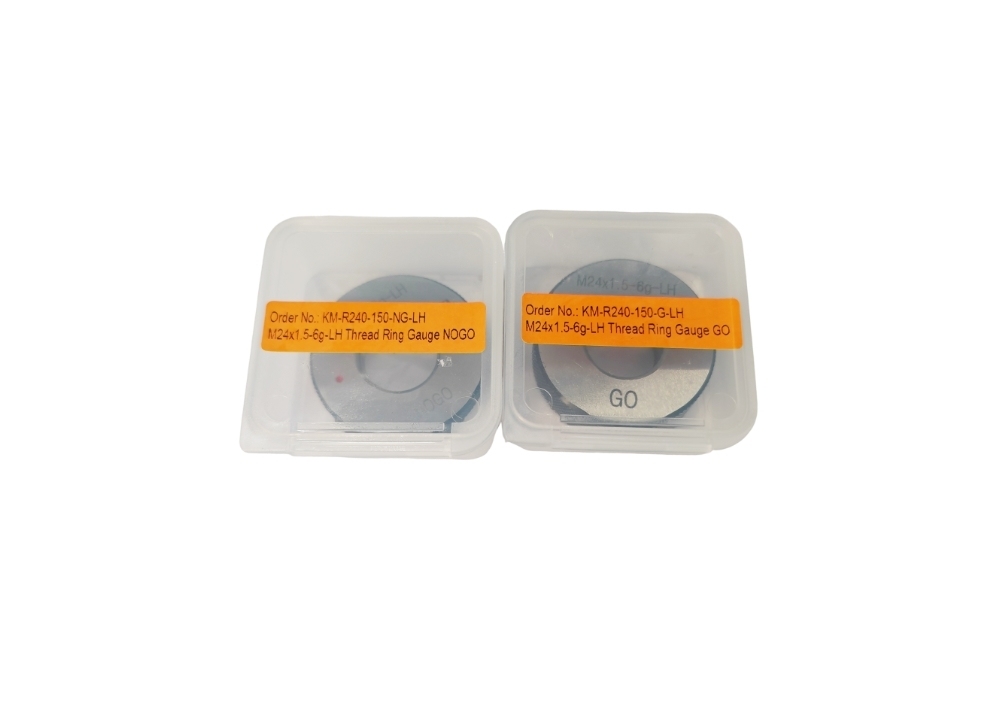

Packing & Shipping
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking 0
Company Profile
Left Hand M24X1.5 Metric Thread Ring Gauge with 6g Accuracy for Accurate Thread Checking 1
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
3) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
4) Do we accept customization?
Yes, OEM services are available.
